The Tangles’ trunk fix kit for Theatre of Magic upgrades your Eddy sensors and also provides a fix for the ToM “trunk error”.
This kit consists of 3 Eddy boards and a redesigned DC motor control board.
The Eddy boards replace and improve the original out lane and trunk detection boards using a specially designed DC motor control board. The included interconnect cable works with the trunk Eddy board to fix the lock-up bug in ToM's game firmware.
This boards in this kit provide improved detection of balls passing through the out-lane, improving the effectiveness of ball saves by the Magna Save feature (Hocus-Pocus).
Kit includes:

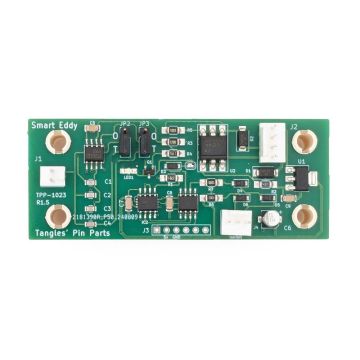

3x Tangles’ Smart Eddy boards (TPP-1023)

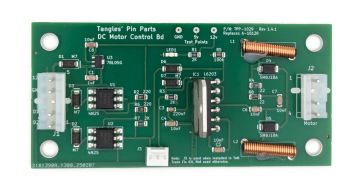

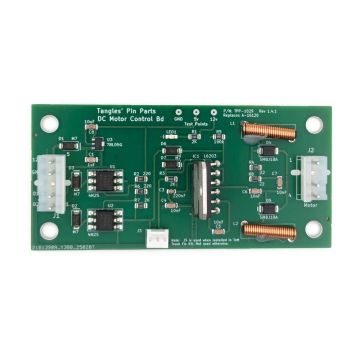

1x Tangles’ DC motor controller board (TPP-1029)
1x trunk-fix interconnect cable (TPP-1100)

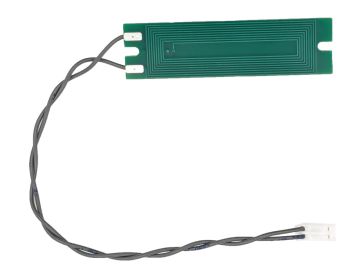

2x out lane sensor (TPP-1066)
2x out lane sensor (TPP-1066)
All 4 boards are supplied with replacement plastic stand-offs.
Bally reference #A-18531-1, A-18543-2, A-16120, and A-17064.
Bally reference #A-18531-1, A-18543-2, A-16120, and A-17064.
