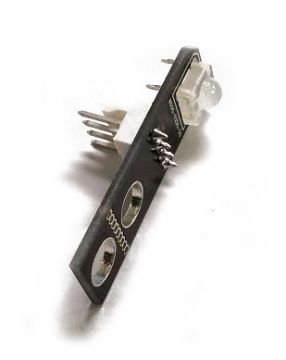

This RGB GI LED is a replacement for some direct drive P3-ROC pinball machine GI lamps. The LED assembly gets mounted to the bottom side of the playfields and protrudes up through the playfield to bring full RGB light to the surface. It can also be used in P3-ROC custom machines using PD-LED driver boards.
It is recommended to shock mount these LEDs by using a 3/8" OD mini post rubber (part #23-6626) between the board and the playfield.
LED Specifications:
LEDs are common anode
Pinout for the 4 pin connector on these LEDs is +VDC, Red GND, Green GND, Blue GND
Forward voltage is 2.4-3.3vdc
Max Current is 20ma per channel
It is recommended to shock mount these LEDs by using a 3/8" OD mini post rubber (part #23-6626) between the board and the playfield.
LED Specifications:
LEDs are common anode
Pinout for the 4 pin connector on these LEDs is +VDC, Red GND, Green GND, Blue GND
Forward voltage is 2.4-3.3vdc
Max Current is 20ma per channel
Game List:
Total Nuclear Annihilation (Spooky Pinball)
Total Nuclear Annihilation (Spooky Pinball)
Alice Cooper's Nightmare Castle (Spooky Pinball)
Rick & Morty (Spooky Pinball)
Hot Wheels (American Pinball).
Hot Wheels (American Pinball).
Spooky Pinball #600-0230-00.
American Pinball #PCB0028-00 (rev-1).
