RGB pop bumper lamp used in Total Nuclear Annihilation and Rick and Morty.

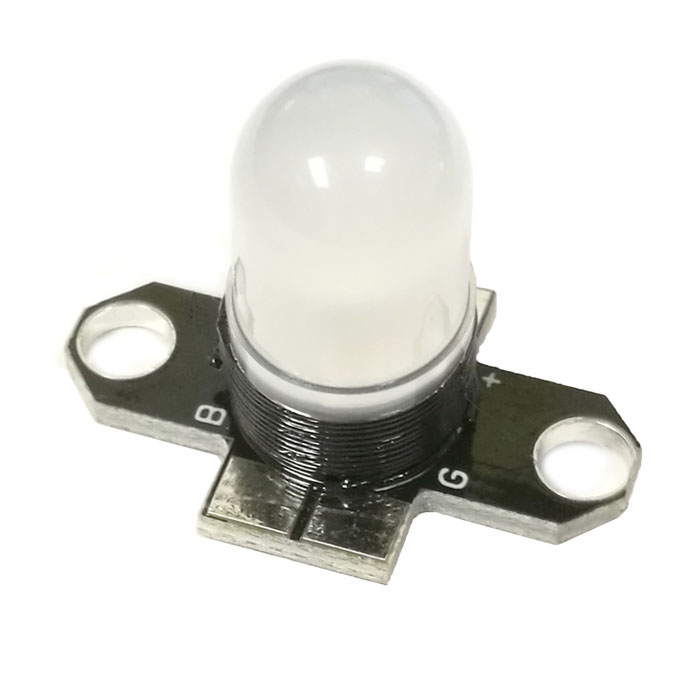

This RGB LED is a replacement for some direct drive P3-ROC pinball machine pop bumper lamps. Mounts under pop bumper caps cleanly.
LED Specifications:
LEDs are common anode
Pinout for the 4 pin connector on these LEDs is +VDC, Red GND, Green GND, Blue GND\
Forward voltage is 2.4-3.3vdc
Max Current is 20ma per channel
LEDs are common anode
Pinout for the 4 pin connector on these LEDs is +VDC, Red GND, Green GND, Blue GND\
Forward voltage is 2.4-3.3vdc
Max Current is 20ma per channel
Spooky reference #600-0258-00.
