![LCD Screen, Electronics, and Bracket Assembly (720p) LCD Screen, Electronics, and Bracket Assembly (720p)](graphics/en-US/cssui/blank.gif)
This Pinball Life LCD Display Assembly comes complete with LCD Bracket, LCD Screen, and LCD controller board. This display is targeted for the DIY/Homebrew/OEM pinball manufacturers and will connect to any PC using either DVI, VGA, or HDMI.
Assembly Technical Specifications:
- Signal Input: DVI, VGA, HDMI
- Resolution: up to 1366x768
- Power Input: 12vdc through DC Jack on controller board - Center Positive (power adapter not included) - Recommended at least a 2 amp supply
- Standard pinball mounting holes

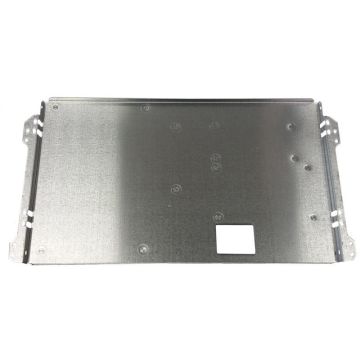

Physical Specificaitons:
- Bracket Width: 15.55 inches
- Bracket Height: 8.31 inches
- Assembly Depth: 1.33 inches (with boards)

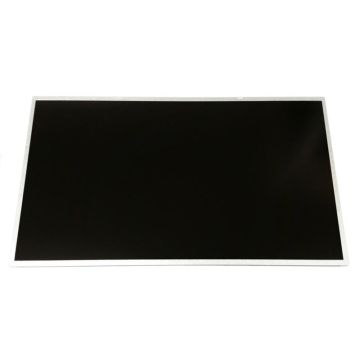

Detailed LCD Specifications:
- Screen Size: 15.6” diagonal
- Pixel Number: 1366 x R.G.B. x 768 pixels
- Pixel Pitch: 0.17925 (H) x 0.17925 (V) mm
- Pixel Arrangement: RGB vertical stripe
- Display Colors color: 262,144 colors
- Transmissive Mode: Normally white
- Surface Treatment: Hard coating (3H)
- Luminance: White LED
- Contrast Ratio: 600
- Viewing Angle (H): +- 70 deg
- Viewing Angle (V): +- 60 deg
- Operating Temp: 0 to +50 deg C (+32 to +122 deg F)
- Storage Temp: -20 to +60 deg C (-4 to +140 deg F)
Compatible as a drop in replacement screen for the following games:
- Total Nuclear Annihilation
- Alice Cooper's Nightmare Castle
- Rick and Morty
- Halloween
- Ultraman
- Total Nuclear Annihilation 2.0 (2022 production run)
- Scooby Doo
- Texas Chainsaw Massacre
- Looney Tunes
If you have any further questions regarding this display, please contact Scott at [email protected].
