Product ID: ASE-2313-7
Classic Bally Lockdown Receiver Bar

Bally stainless steel lockdown bar receiver assembly used from 1973 (beginning with Sky Kings) to 1988 (ending with Blackwater 100).

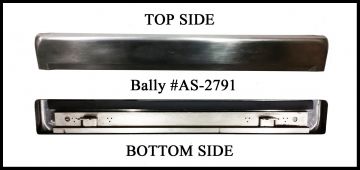

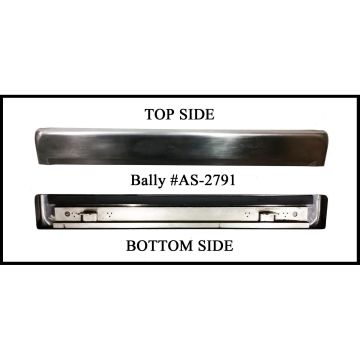

Works with AS-2791 lockdown bar (see related product link at the bottom of this page).

Bally/Midway reference #ASE-2313-7.

This assembly comes complete and includes the following parts:
P-6363 - Stainless Steel Receiver Bar Lever
P-6364-6 - Stainless Steel Receiver Bar Front Rail Bracket
P-6365-3 - Receiver Bar Front Rail Latch
S-231-695 - Bushing
PBL-800-0025-00 - 1/4" Stainless Steel Carriage Bolt Washer
PBL-800-0026-00 - 3/4" OD x 1/4" ID Washer
P-1158-5 - 0.40" ID, 0.72" OD Spring Washer
P-801-107 - #8 x 5/8" Thick Washer
P-801-514 - #8 x 5/8" Thin Washer
PBL-800-0030-00 - 1/4-20 x 1-1/2" Stainless Steel Carriage Bolt
PBL-200-0154-00 - Bushing/Spacer
4008-01003-10 - #8-32 x 5/8" Pan Screw With Locking Washer
240-5102-00 - #8-32 Nylon Insert Lock Nut
4420-01117-00 - 1/4"-20 Hex Nut
PBL-800-0032-00 - 1/4" External Tooth Locking Washer
